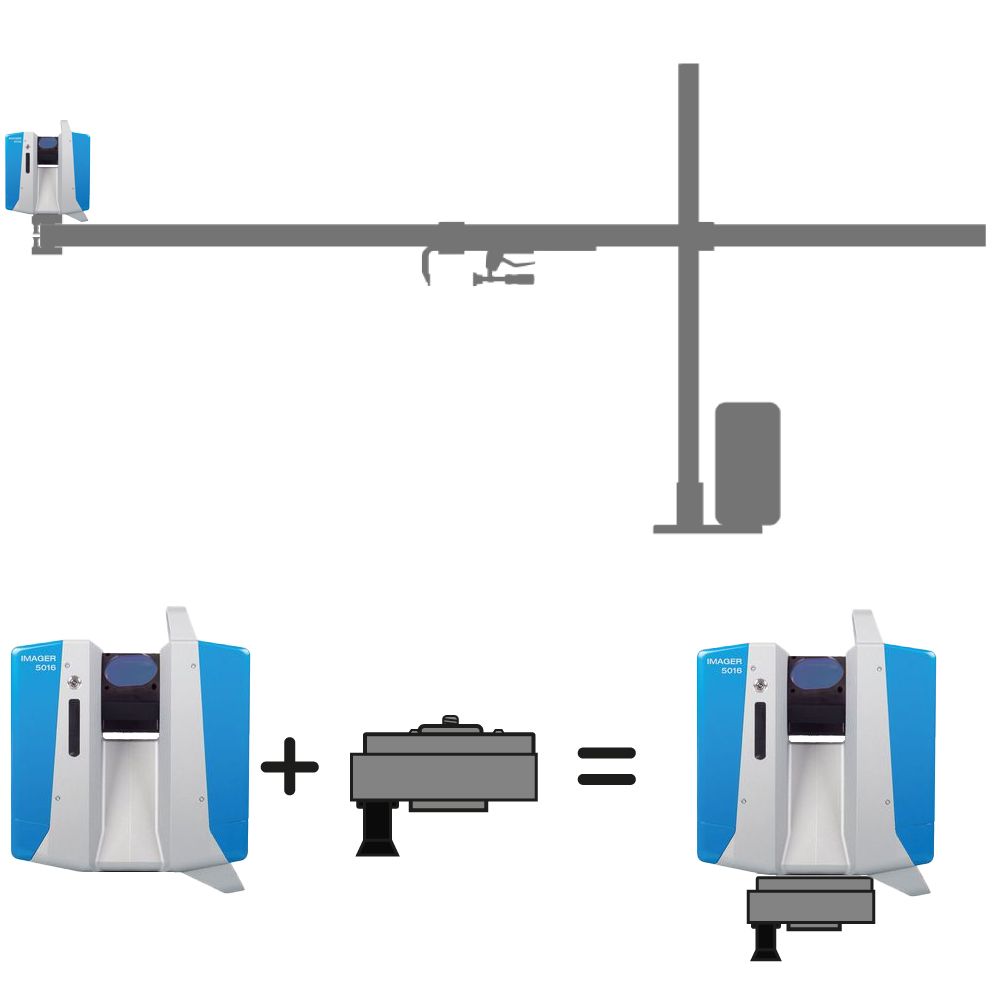

Looking to fully capture facades? Simply placing the scanner on the ground isn't sufficient. With this tripod, you can significantly expand your scanning capabilities—making it the ideal solution for facades and windows when the building or object is too tall! The horizontal tripod allows you to position your laser scanner outside by extending it from inside through windows, dormers, or other openings.

Equipped with two safety adapters on the horizontal arm, this tripod accommodates both standard and overhead scanning, ensuring you can effortlessly capture upper and lower areas. The tripod's exceptional stability minimizes vibrations for accurate results. It's versatile enough for not just scanning building facades, but also for inspecting elevator shafts.

For convenient transport, the entire tripod fits neatly into a transport box. If you need to ship it in smaller packages, you can easily separate the individual components as needed.

**Designated Use:**

- Secure scanning of external facades

- Precise scanning outside windows

- Roofscape and dormer scanning

- Reliable scanning behind parapets

- Elevator shaft inspections

- Bridge examinations

**Product Characteristics:**

- Supports upright and overhead scanning with 2 adapter slots on the horizontal arm

*(Check with your scanner manufacturer for overhead scanning compatibility.)*

- Tripod weight: 37kg

- Maximum distance from scanner to facade: 260cm

- Materials: aluminium and steel

- Maximum load: 6kg

- Maximum useful height: 157cm

- Minimum useful height: 18cm

- Accommodates window or parapet widths up to 22cm

- Transport box dimensions (L x W x H): 135 x 42 x 44cm

- Transport box weight (including tripod): 50kg

**Compatible Laser Scanners:**

- FARO Focus Premium

- FARO Focus Core

- FARO Focus S/M series

- FARO Focus3D X series

- Trimble X7

- Leica RTC360

- Z+F Imager 5016

If your scanner is not listed, please reach out via the "Question on item" tab or email us at info@laserscanning-europe.com.

**Delivery Contents:**

- 1 transport box with carrying handles and 4 rollers

- 1 base

- 2 water cans

- 1 vertical extrusion made up of 2 segments

- 1 horizontal arm made up of 3 segments

- 1 window frame bracket

- 1 case containing:

- 1 connector for vertical extrusion/horizontal arm

- 1 safety adapter for the scanner, with a safety rope

- 1 screw handle for horizontal arm

- 1 Allen key

- 13 screws in a mini case

- User manual
